W10x54 – W Shapes - American wide flange beams

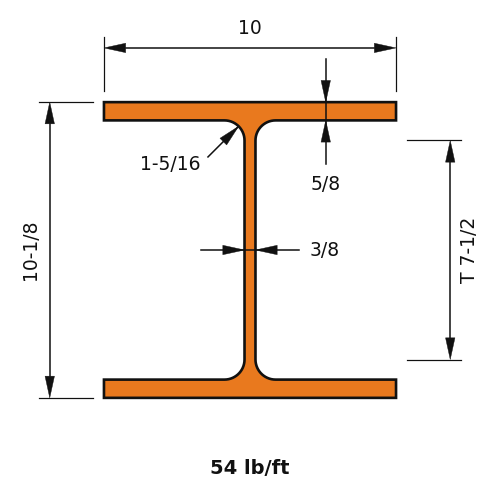

W10x54 is 10.1 in (257 mm) deep with a 10 in (254 mm) wide flange, and weighs 54 lb/ft (80.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)54.0
Depth of Section (in)10.1
Width of Section (in)10.0
Web Thickness (in)0.37
Flange Thickness (in)0.615
Kdet Dimension (in)1.3125
T Dimension (in)7.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)303
Zx (in³)66.6
Sx (in³)60
rx (in)4.37
Iy (in⁴)103
Zy (in³)31.3
Sy (in³)20.6
ry (in)2.56
J (in⁴)1.82
Cw (in⁶)2320
rts (in)2.85
ho (in)9.49

Full sortable table: Section properties table for this family
