W10x60 – W Shapes - American wide flange beams

W10x60 is 10.2 in (259 mm) deep with a 10.1 in (257 mm) wide flange, and weighs 60 lb/ft (89.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

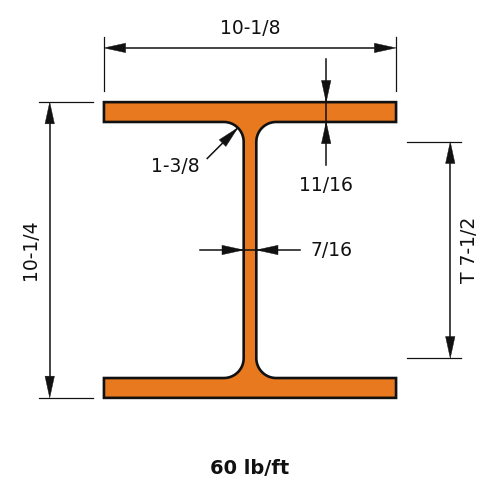

Dimensions

PropertyValue
Nominal Weight (lb/ft)60.0
Depth of Section (in)10.2
Width of Section (in)10.1
Web Thickness (in)0.42
Flange Thickness (in)0.68
Kdet Dimension (in)1.375
T Dimension (in)7.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)341
Zx (in³)74.6
Sx (in³)66.7
rx (in)4.39
Iy (in⁴)116
Zy (in³)35
Sy (in³)23
ry (in)2.57
J (in⁴)2.48
Cw (in⁶)2640
rts (in)2.88
ho (in)9.52

Full sortable table: Section properties table for this family
