W10x100 – W Shapes - American wide flange beams

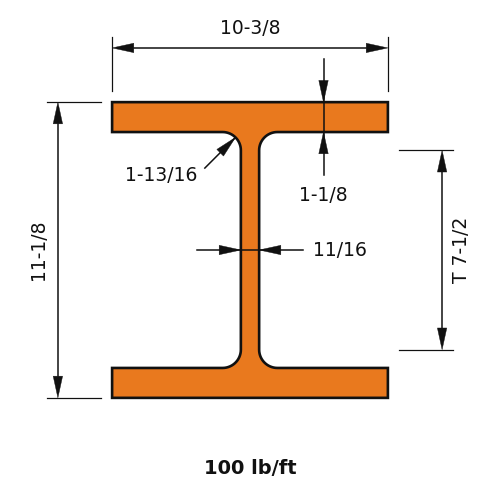

W10x100 is 11.1 in (282 mm) deep with a 10.3 in (262 mm) wide flange, and weighs 100 lb/ft (148.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)100.0
Depth of Section (in)11.1
Width of Section (in)10.3
Web Thickness (in)0.68
Flange Thickness (in)1.12
Kdet Dimension (in)1.8125
T Dimension (in)7.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)623
Zx (in³)130
Sx (in³)112
rx (in)4.6
Iy (in⁴)207
Zy (in³)61
Sy (in³)40
ry (in)2.65
J (in⁴)10.9
Cw (in⁶)5150
rts (in)3.04
ho (in)10

Full sortable table: Section properties table for this family
