W10x112 – W Shapes - American wide flange beams

W10x112 is 11.4 in (290 mm) deep with a 10.4 in (264 mm) wide flange, and weighs 112 lb/ft (166.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

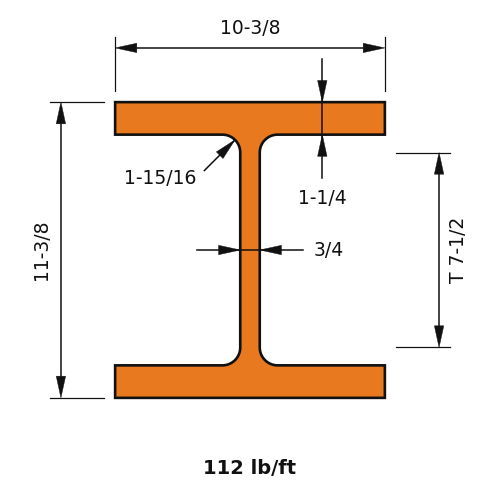

Dimensions

PropertyValue
Nominal Weight (lb/ft)112.0
Depth of Section (in)11.4
Width of Section (in)10.4
Web Thickness (in)0.755
Flange Thickness (in)1.25
Kdet Dimension (in)1.9375
T Dimension (in)7.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)716
Zx (in³)147
Sx (in³)126
rx (in)4.66
Iy (in⁴)236
Zy (in³)69.2
Sy (in³)45.3
ry (in)2.68
J (in⁴)15.1
Cw (in⁶)6020
rts (in)3.08
ho (in)10.2

Full sortable table: Section properties table for this family
