W10x88 – W Shapes - American wide flange beams

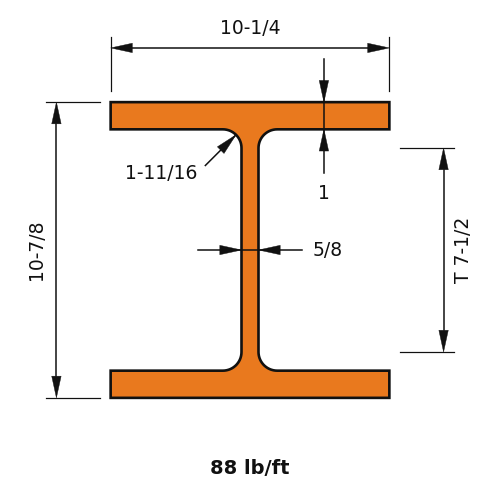

W10x88 is 10.8 in (274 mm) deep with a 10.3 in (262 mm) wide flange, and weighs 88 lb/ft (131.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)88.0
Depth of Section (in)10.8
Width of Section (in)10.3
Web Thickness (in)0.605
Flange Thickness (in)0.99
Kdet Dimension (in)1.6875
T Dimension (in)7.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)534
Zx (in³)113
Sx (in³)98.5
rx (in)4.54
Iy (in⁴)179
Zy (in³)53.1
Sy (in³)34.8
ry (in)2.63
J (in⁴)7.53
Cw (in⁶)4330
rts (in)2.99
ho (in)9.81
