W12x14 – W Shapes - American wide flange beams

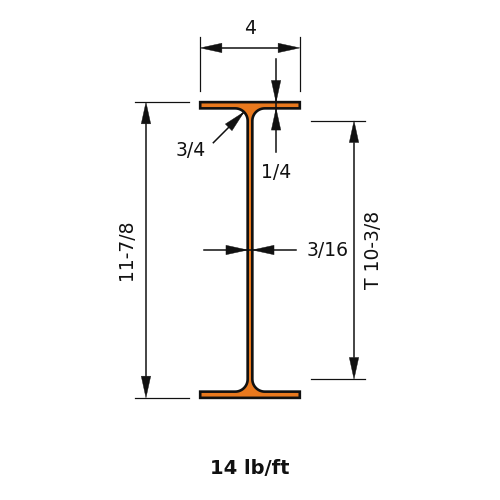

W12x14 is 11.9 in (302 mm) deep with a 3.97 in (101 mm) wide flange, and weighs 14 lb/ft (20.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)14.0
Depth of Section (in)11.9
Width of Section (in)3.97
Web Thickness (in)0.2
Flange Thickness (in)0.225
Kdet Dimension (in)0.75
T Dimension (in)10.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)88.6
Zx (in³)17.4
Sx (in³)14.9
rx (in)4.62
Iy (in⁴)2.36
Zy (in³)1.9
Sy (in³)1.19
ry (in)0.753
J (in⁴)0.0704
Cw (in⁶)80.4
rts (in)0.961
ho (in)11.7
