W12x22 – W Shapes - American wide flange beams

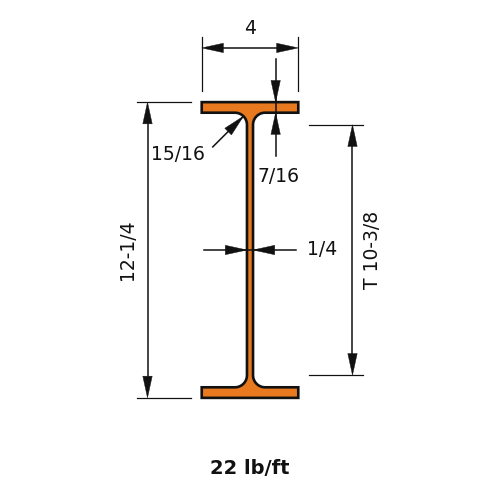

W12x22 is 12.3 in (312 mm) deep with a 4.03 in (102 mm) wide flange, and weighs 22 lb/ft (32.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)22.0
Depth of Section (in)12.3
Width of Section (in)4.03
Web Thickness (in)0.26
Flange Thickness (in)0.425
Kdet Dimension (in)0.9375
T Dimension (in)10.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)156
Zx (in³)29.3
Sx (in³)25.4
rx (in)4.91
Iy (in⁴)4.66
Zy (in³)3.66
Sy (in³)2.31
ry (in)0.848
J (in⁴)0.293
Cw (in⁶)164
rts (in)1.04
ho (in)11.9
