W12x19 – W Shapes - American wide flange beams

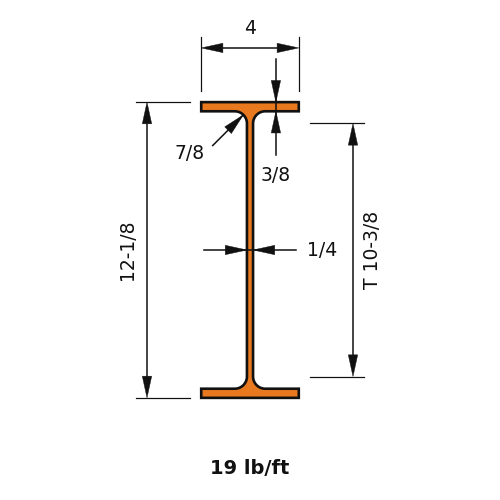

W12x19 is 12.2 in (310 mm) deep with a 4.01 in (102 mm) wide flange, and weighs 19 lb/ft (28.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)19.0
Depth of Section (in)12.2
Width of Section (in)4.01
Web Thickness (in)0.235
Flange Thickness (in)0.35
Kdet Dimension (in)0.875
T Dimension (in)10.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)130
Zx (in³)24.7
Sx (in³)21.3
rx (in)4.82
Iy (in⁴)3.76
Zy (in³)2.98
Sy (in³)1.88
ry (in)0.822
J (in⁴)0.18
Cw (in⁶)131
rts (in)1.02
ho (in)11.9

Full sortable table: Section properties table for this family
