W12x26 – W Shapes - American wide flange beams

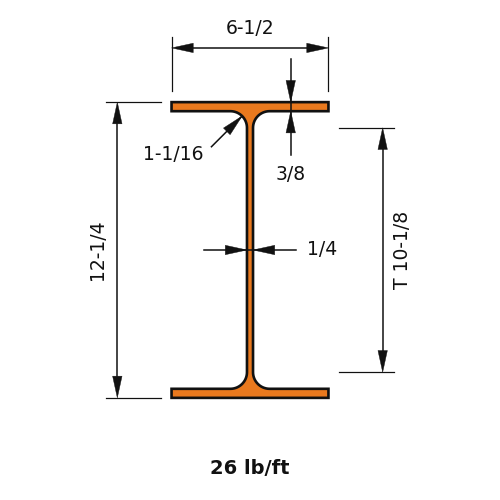

W12x26 is 12.2 in (310 mm) deep with a 6.49 in (165 mm) wide flange, and weighs 26 lb/ft (38.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)26.0
Depth of Section (in)12.2
Width of Section (in)6.49
Web Thickness (in)0.23
Flange Thickness (in)0.38
Kdet Dimension (in)1.0625
T Dimension (in)10.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)204
Zx (in³)37.2
Sx (in³)33.4
rx (in)5.17
Iy (in⁴)17.3
Zy (in³)8.17
Sy (in³)5.34
ry (in)1.51
J (in⁴)0.3
Cw (in⁶)607
rts (in)1.75
ho (in)11.8

Full sortable table: Section properties table for this family
