W12x58 – W Shapes - American wide flange beams

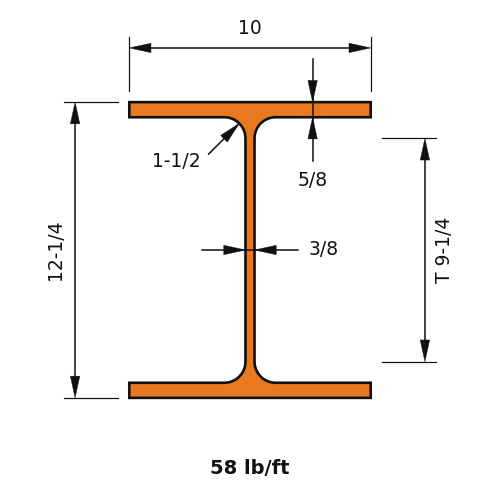

W12x58 is 12.2 in (310 mm) deep with a 10 in (254 mm) wide flange, and weighs 58 lb/ft (86.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)58.0
Depth of Section (in)12.2
Width of Section (in)10.0
Web Thickness (in)0.36
Flange Thickness (in)0.64
Kdet Dimension (in)1.5
T Dimension (in)9.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)475
Zx (in³)86.4
Sx (in³)78
rx (in)5.28
Iy (in⁴)107
Zy (in³)32.5
Sy (in³)21.4
ry (in)2.51
J (in⁴)2.1
Cw (in⁶)3570
rts (in)2.81
ho (in)11.6
