W12x65 – W Shapes - American wide flange beams

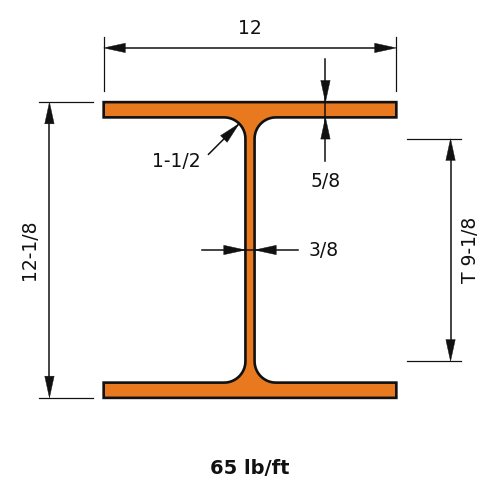

W12x65 is 12.1 in (307 mm) deep with a 12 in (305 mm) wide flange, and weighs 65 lb/ft (96.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)65.0
Depth of Section (in)12.1
Width of Section (in)12.0
Web Thickness (in)0.39
Flange Thickness (in)0.605
Kdet Dimension (in)1.5
T Dimension (in)9.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)533
Zx (in³)96.8
Sx (in³)87.9
rx (in)5.28
Iy (in⁴)174
Zy (in³)44.1
Sy (in³)29.1
ry (in)3.02
J (in⁴)2.18
Cw (in⁶)5780
rts (in)3.38
ho (in)11.5

Full sortable table: Section properties table for this family
