W12x53 – W Shapes - American wide flange beams

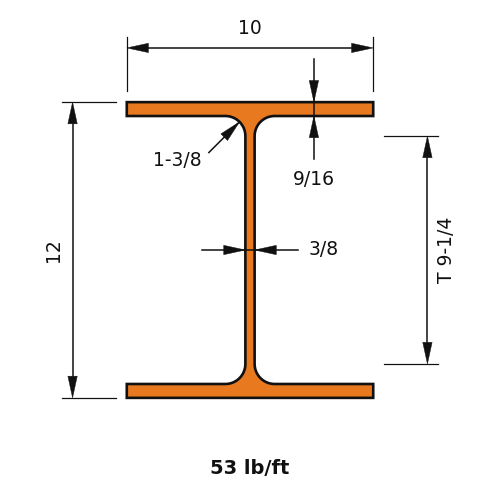

W12x53 is 12.1 in (307 mm) deep with a 10 in (254 mm) wide flange, and weighs 53 lb/ft (78.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)53.0
Depth of Section (in)12.1
Width of Section (in)10.0
Web Thickness (in)0.345
Flange Thickness (in)0.575
Kdet Dimension (in)1.375
T Dimension (in)9.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)425
Zx (in³)77.9
Sx (in³)70.6
rx (in)5.23
Iy (in⁴)95.8
Zy (in³)29.1
Sy (in³)19.2
ry (in)2.48
J (in⁴)1.58
Cw (in⁶)3160
rts (in)2.79
ho (in)11.5

Full sortable table: Section properties table for this family
