W14x99 – W Shapes - American wide flange beams

W14x99 is 14.2 in (361 mm) deep with a 14.6 in (371 mm) wide flange, and weighs 99 lb/ft (147.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

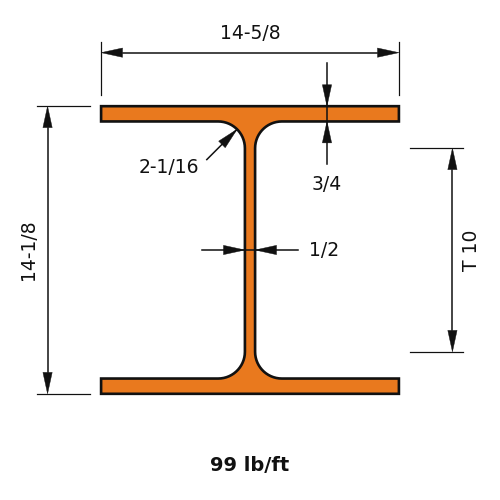

Dimensions

PropertyValue
Nominal Weight (lb/ft)99.0
Depth of Section (in)14.2
Width of Section (in)14.6
Web Thickness (in)0.485
Flange Thickness (in)0.78
Kdet Dimension (in)2.0625
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1110
Zx (in³)173
Sx (in³)157
rx (in)6.17
Iy (in⁴)402
Zy (in³)83.6
Sy (in³)55.2
ry (in)3.71
J (in⁴)5.37
Cw (in⁶)18000
rts (in)4.14
ho (in)13.4
