W14x109 – W Shapes - American wide flange beams

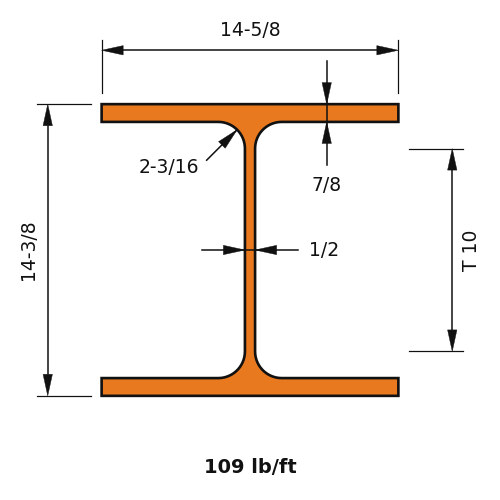

W14x109 is 14.3 in (363 mm) deep with a 14.6 in (371 mm) wide flange, and weighs 109 lb/ft (162.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)109.0
Depth of Section (in)14.3
Width of Section (in)14.6
Web Thickness (in)0.525
Flange Thickness (in)0.86
Kdet Dimension (in)2.1875
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1240
Zx (in³)192
Sx (in³)173
rx (in)6.22
Iy (in⁴)447
Zy (in³)92.7
Sy (in³)61.2
ry (in)3.73
J (in⁴)7.12
Cw (in⁶)20200
rts (in)4.17
ho (in)13.4

Full sortable table: Section properties table for this family
