W14x90 – W Shapes - American wide flange beams

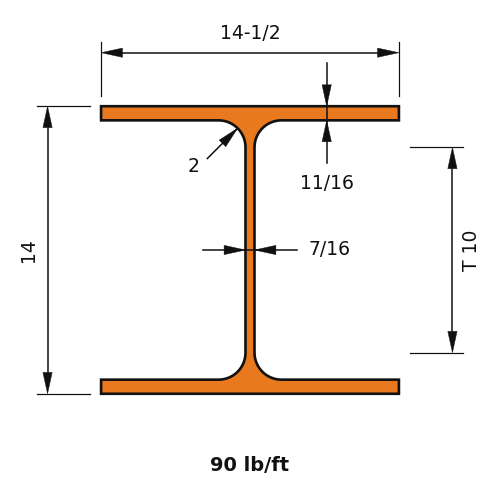

W14x90 is 14 in (356 mm) deep with a 14.5 in (368 mm) wide flange, and weighs 90 lb/ft (133.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)90.0
Depth of Section (in)14.0
Width of Section (in)14.5
Web Thickness (in)0.44
Flange Thickness (in)0.71
Kdet Dimension (in)2.0
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)999
Zx (in³)157
Sx (in³)143
rx (in)6.14
Iy (in⁴)362
Zy (in³)75.6
Sy (in³)49.9
ry (in)3.7
J (in⁴)4.06
Cw (in⁶)16000
rts (in)4.1
ho (in)13.3
