W14x283 – W Shapes - American wide flange beams

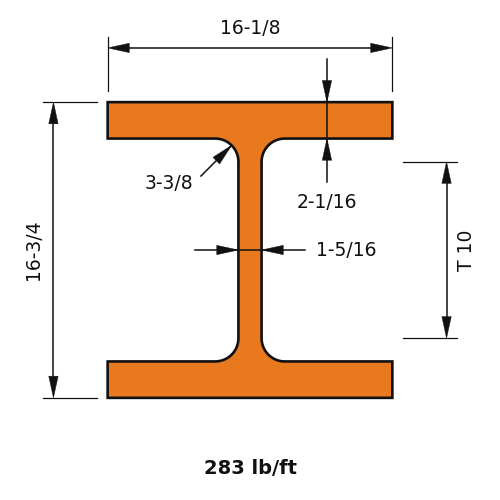

W14x283 is 16.7 in (424 mm) deep with a 16.1 in (409 mm) wide flange, and weighs 283 lb/ft (421.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)283.0
Depth of Section (in)16.7
Width of Section (in)16.1
Web Thickness (in)1.29
Flange Thickness (in)2.07
Kdet Dimension (in)3.375
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3840
Zx (in³)542
Sx (in³)459
rx (in)6.79
Iy (in⁴)1440
Zy (in³)274
Sy (in³)179
ry (in)4.17
J (in⁴)104
Cw (in⁶)77700
rts (in)4.8
ho (in)14.6
