W14x257 – W Shapes - American wide flange beams

W14x257 is 16.4 in (417 mm) deep with a 16 in (406 mm) wide flange, and weighs 257 lb/ft (382.5 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

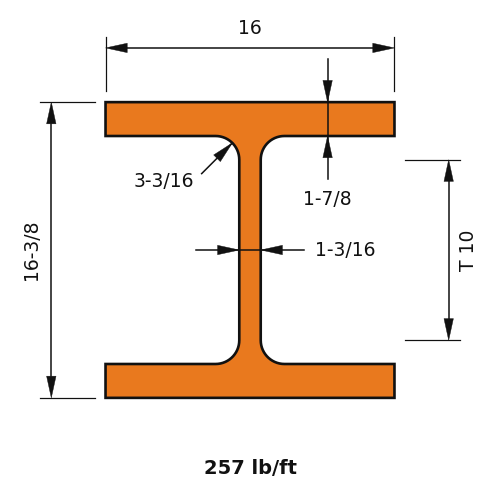

Dimensions

PropertyValue
Nominal Weight (lb/ft)257.0
Depth of Section (in)16.4
Width of Section (in)16.0
Web Thickness (in)1.18
Flange Thickness (in)1.89
Kdet Dimension (in)3.1875
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3400
Zx (in³)487
Sx (in³)415
rx (in)6.71
Iy (in⁴)1290
Zy (in³)246
Sy (in³)161
ry (in)4.13
J (in⁴)79.1
Cw (in⁶)67800
rts (in)4.75
ho (in)14.5

Full sortable table: Section properties table for this family
