W14x311 – W Shapes - American wide flange beams

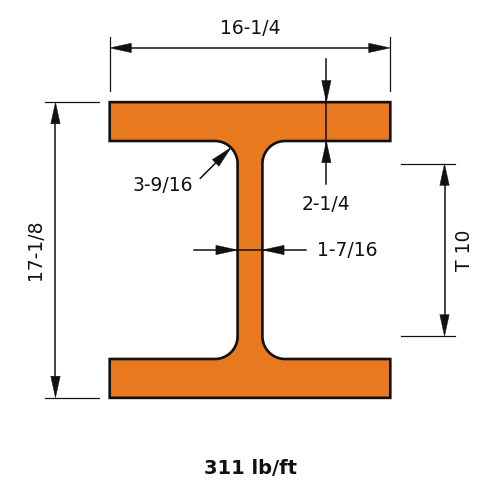

W14x311 is 17.1 in (434 mm) deep with a 16.2 in (411 mm) wide flange, and weighs 311 lb/ft (462.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)311.0
Depth of Section (in)17.1
Width of Section (in)16.2
Web Thickness (in)1.41
Flange Thickness (in)2.26
Kdet Dimension (in)3.5625
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)4330
Zx (in³)603
Sx (in³)506
rx (in)6.88
Iy (in⁴)1610
Zy (in³)304
Sy (in³)199
ry (in)4.2
J (in⁴)136
Cw (in⁶)89100
rts (in)4.87
ho (in)14.8

Full sortable table: Section properties table for this family
