W14x426 – W Shapes - American wide flange beams

W14x426 is 18.7 in (475 mm) deep with a 16.7 in (424 mm) wide flange, and weighs 426 lb/ft (634.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

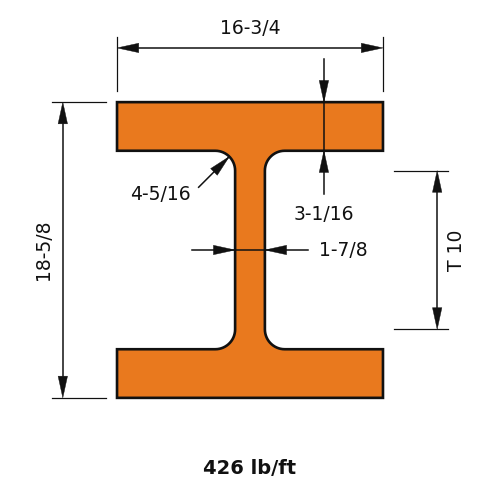

Dimensions

PropertyValue
Nominal Weight (lb/ft)426.0
Depth of Section (in)18.7
Width of Section (in)16.7
Web Thickness (in)1.88
Flange Thickness (in)3.04
Kdet Dimension (in)4.3125
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)6600
Zx (in³)869
Sx (in³)706
rx (in)7.26
Iy (in⁴)2360
Zy (in³)434
Sy (in³)283
ry (in)4.34
J (in⁴)331
Cw (in⁶)144000
rts (in)5.11
ho (in)15.7

Full sortable table: Section properties table for this family
