W14x398 – W Shapes - American wide flange beams

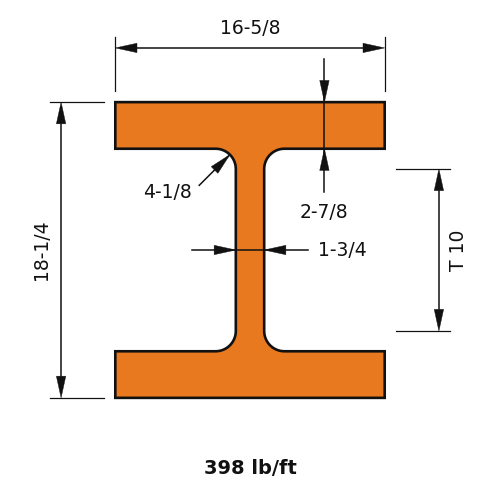

W14x398 is 18.3 in (465 mm) deep with a 16.6 in (422 mm) wide flange, and weighs 398 lb/ft (592.3 kg/m).
Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 398.0 |
| Depth of Section (in) | 18.3 |
| Width of Section (in) | 16.6 |
| Web Thickness (in) | 1.77 |
| Flange Thickness (in) | 2.85 |
| Kdet Dimension (in) | 4.125 |
| T Dimension (in) | 10.0 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 6000 |
| Zx (in³) | 801 |
| Sx (in³) | 656 |
| rx (in) | 7.16 |
| Iy (in⁴) | 2170 |
| Zy (in³) | 402 |
| Sy (in³) | 262 |
| ry (in) | 4.31 |
| J (in⁴) | 273 |
| Cw (in⁶) | 129000 |
| rts (in) | 5.05 |
| ho (in) | 15.5 |
Full sortable table: Section properties table for this family
