W14x455 – W Shapes - American wide flange beams

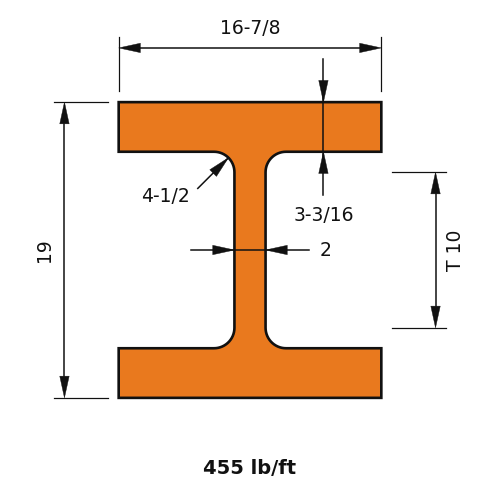

W14x455 is 19 in (483 mm) deep with a 16.8 in (427 mm) wide flange, and weighs 455 lb/ft (677.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)455.0
Depth of Section (in)19.0
Width of Section (in)16.8
Web Thickness (in)2.02
Flange Thickness (in)3.21
Kdet Dimension (in)4.5
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)7190
Zx (in³)936
Sx (in³)756
rx (in)7.33
Iy (in⁴)2560
Zy (in³)468
Sy (in³)304
ry (in)4.38
J (in⁴)395
Cw (in⁶)160000
rts (in)5.17
ho (in)15.8

Full sortable table: Section properties table for this family
