W14x500 – W Shapes - American wide flange beams

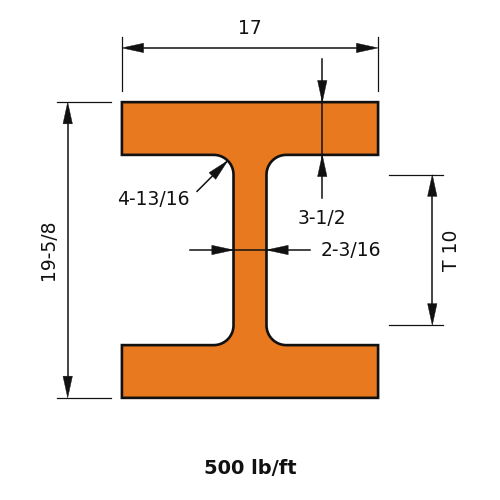

W14x500 is 19.6 in (498 mm) deep with a 17 in (432 mm) wide flange, and weighs 500 lb/ft (744.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)500.0
Depth of Section (in)19.6
Width of Section (in)17.0
Web Thickness (in)2.19
Flange Thickness (in)3.5
Kdet Dimension (in)4.8125
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)8210
Zx (in³)1050
Sx (in³)838
rx (in)7.48
Iy (in⁴)2880
Zy (in³)522
Sy (in³)339
ry (in)4.43
J (in⁴)514
Cw (in⁶)187000
rts (in)5.26
ho (in)16.1
