W14x665 – W Shapes - American wide flange beams

W14x665 is 21.6 in (549 mm) deep with a 17.7 in (450 mm) wide flange, and weighs 665 lb/ft (989.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

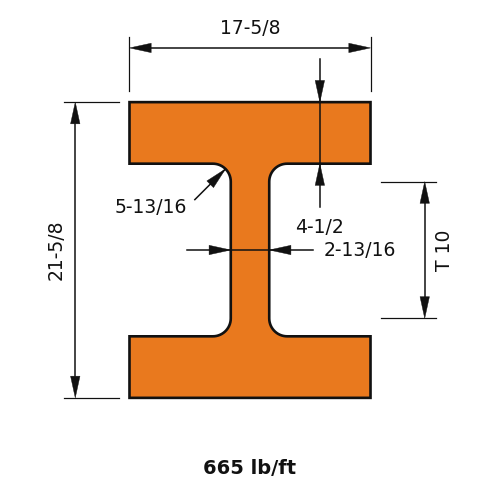

Dimensions

PropertyValue
Nominal Weight (lb/ft)665.0
Depth of Section (in)21.6
Width of Section (in)17.7
Web Thickness (in)2.83
Flange Thickness (in)4.52
Kdet Dimension (in)5.8125
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)12400
Zx (in³)1480
Sx (in³)1150
rx (in)7.98
Iy (in⁴)4170
Zy (in³)730
Sy (in³)472
ry (in)4.62
J (in⁴)1120
Cw (in⁶)305000
rts (in)5.57
ho (in)17.1

Full sortable table: Section properties table for this family
