W14x605 – W Shapes - American wide flange beams

W14x605 is 20.9 in (531 mm) deep with a 17.4 in (442 mm) wide flange, and weighs 605 lb/ft (900.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

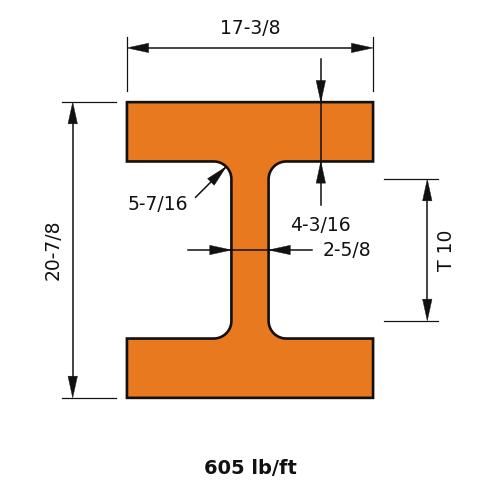

Dimensions

PropertyValue
Nominal Weight (lb/ft)605.0
Depth of Section (in)20.9
Width of Section (in)17.4
Web Thickness (in)2.6
Flange Thickness (in)4.16
Kdet Dimension (in)5.4375
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)10800
Zx (in³)1320
Sx (in³)1040
rx (in)7.8
Iy (in⁴)3680
Zy (in³)652
Sy (in³)423
ry (in)4.55
J (in⁴)869
Cw (in⁶)258000
rts (in)5.44
ho (in)16.7

Full sortable table: Section properties table for this family
