W16x45 – W Shapes - American wide flange beams

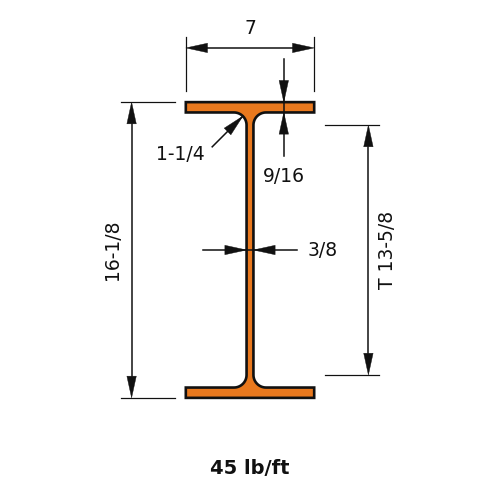

W16x45 is 16.1 in (409 mm) deep with a 7.04 in (179 mm) wide flange, and weighs 45 lb/ft (67.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)45.0
Depth of Section (in)16.1
Width of Section (in)7.04
Web Thickness (in)0.345
Flange Thickness (in)0.565
Kdet Dimension (in)1.25
T Dimension (in)13.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)586
Zx (in³)82.3
Sx (in³)72.7
rx (in)6.65
Iy (in⁴)32.8
Zy (in³)14.5
Sy (in³)9.34
ry (in)1.57
J (in⁴)1.11
Cw (in⁶)1990
rts (in)1.87
ho (in)15.5
