W16x50 – W Shapes - American wide flange beams

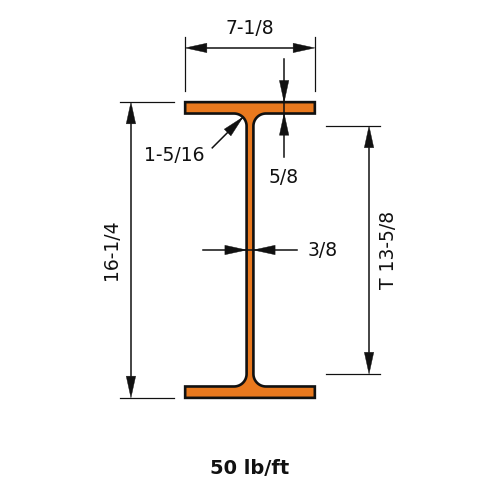

W16x50 is 16.3 in (414 mm) deep with a 7.07 in (180 mm) wide flange, and weighs 50 lb/ft (74.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)50.0
Depth of Section (in)16.3
Width of Section (in)7.07
Web Thickness (in)0.38
Flange Thickness (in)0.63
Kdet Dimension (in)1.3125
T Dimension (in)13.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)659
Zx (in³)92
Sx (in³)81
rx (in)6.68
Iy (in⁴)37.2
Zy (in³)16.3
Sy (in³)10.5
ry (in)1.59
J (in⁴)1.52
Cw (in⁶)2270
rts (in)1.89
ho (in)15.7

Full sortable table: Section properties table for this family
