W16x40 – W Shapes - American wide flange beams

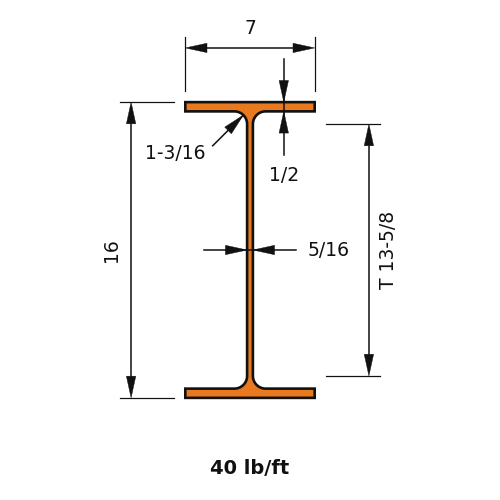

W16x40 is 16 in (406 mm) deep with a 7 in (178 mm) wide flange, and weighs 40 lb/ft (59.5 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)40.0
Depth of Section (in)16.0
Width of Section (in)7.0
Web Thickness (in)0.305
Flange Thickness (in)0.505
Kdet Dimension (in)1.1875
T Dimension (in)13.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)518
Zx (in³)73
Sx (in³)64.7
rx (in)6.63
Iy (in⁴)28.9
Zy (in³)12.7
Sy (in³)8.25
ry (in)1.57
J (in⁴)0.794
Cw (in⁶)1730
rts (in)1.86
ho (in)15.5
