W18x60 – W Shapes - American wide flange beams

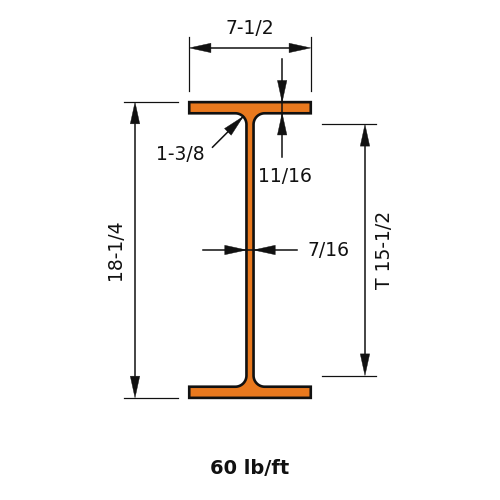

W18x60 is 18.2 in (462 mm) deep with a 7.56 in (192 mm) wide flange, and weighs 60 lb/ft (89.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)60.0
Depth of Section (in)18.2
Width of Section (in)7.56
Web Thickness (in)0.415
Flange Thickness (in)0.695
Kdet Dimension (in)1.375
T Dimension (in)15.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)984
Zx (in³)123
Sx (in³)108
rx (in)7.47
Iy (in⁴)50.1
Zy (in³)20.6
Sy (in³)13.3
ry (in)1.68
J (in⁴)2.17
Cw (in⁶)3850
rts (in)2.02
ho (in)17.5
