W18x65 – W Shapes - American wide flange beams

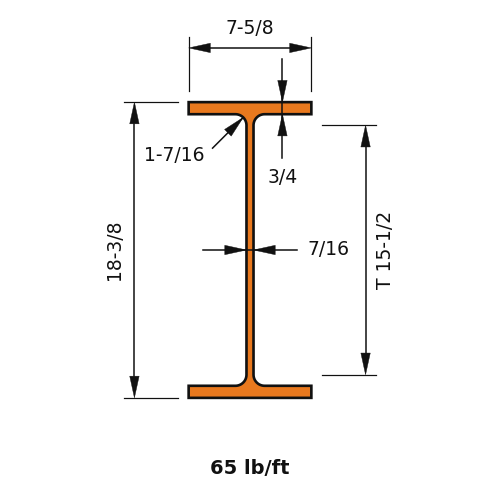

W18x65 is 18.4 in (467 mm) deep with a 7.59 in (193 mm) wide flange, and weighs 65 lb/ft (96.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)65.0
Depth of Section (in)18.4
Width of Section (in)7.59
Web Thickness (in)0.45
Flange Thickness (in)0.75
Kdet Dimension (in)1.4375
T Dimension (in)15.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1070
Zx (in³)133
Sx (in³)117
rx (in)7.49
Iy (in⁴)54.8
Zy (in³)22.5
Sy (in³)14.4
ry (in)1.69
J (in⁴)2.73
Cw (in⁶)4240
rts (in)2.03
ho (in)17.7

Full sortable table: Section properties table for this family
