W21x55 – W Shapes - American wide flange beams

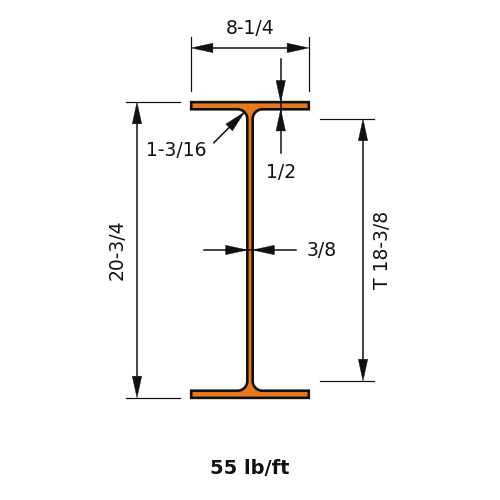

W21x55 is 20.8 in (528 mm) deep with an 8.22 in (209 mm) wide flange, and weighs 55 lb/ft (81.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)55.0
Depth of Section (in)20.8
Width of Section (in)8.22
Web Thickness (in)0.375
Flange Thickness (in)0.522
Kdet Dimension (in)1.1875
T Dimension (in)18.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1140
Zx (in³)126
Sx (in³)110
rx (in)8.4
Iy (in⁴)48.4
Zy (in³)18.4
Sy (in³)11.8
ry (in)1.73
J (in⁴)1.24
Cw (in⁶)4980
rts (in)2.11
ho (in)20.3
