W21x62 – W Shapes - American wide flange beams

W21x62 is 21 in (533 mm) deep with an 8.24 in (209 mm) wide flange, and weighs 62 lb/ft (92.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

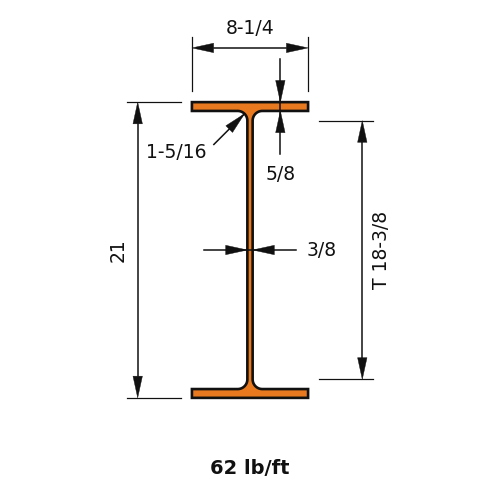

Dimensions

PropertyValue
Nominal Weight (lb/ft)62.0
Depth of Section (in)21.0
Width of Section (in)8.24
Web Thickness (in)0.4
Flange Thickness (in)0.615
Kdet Dimension (in)1.3125
T Dimension (in)18.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1330
Zx (in³)144
Sx (in³)127
rx (in)8.54
Iy (in⁴)57.5
Zy (in³)21.7
Sy (in³)14
ry (in)1.77
J (in⁴)1.83
Cw (in⁶)5960
rts (in)2.15
ho (in)20.4

Full sortable table: Section properties table for this family
