W21x111 – W Shapes - American wide flange beams

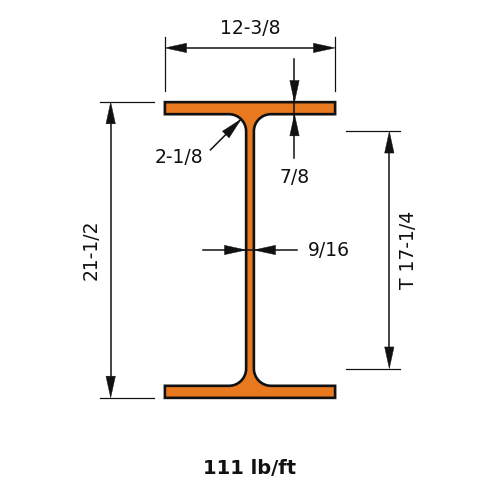

W21x111 is 21.5 in (546 mm) deep with a 12.3 in (312 mm) wide flange, and weighs 111 lb/ft (165.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)111.0
Depth of Section (in)21.5
Width of Section (in)12.3
Web Thickness (in)0.55
Flange Thickness (in)0.875
Kdet Dimension (in)2.125
T Dimension (in)17.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2670
Zx (in³)279
Sx (in³)249
rx (in)9.05
Iy (in⁴)274
Zy (in³)68.2
Sy (in³)44.5
ry (in)2.9
J (in⁴)6.83
Cw (in⁶)29200
rts (in)3.37
ho (in)20.6
