W21x122 – W Shapes - American wide flange beams

W21x122 is 21.7 in (551 mm) deep with a 12.4 in (315 mm) wide flange, and weighs 122 lb/ft (181.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

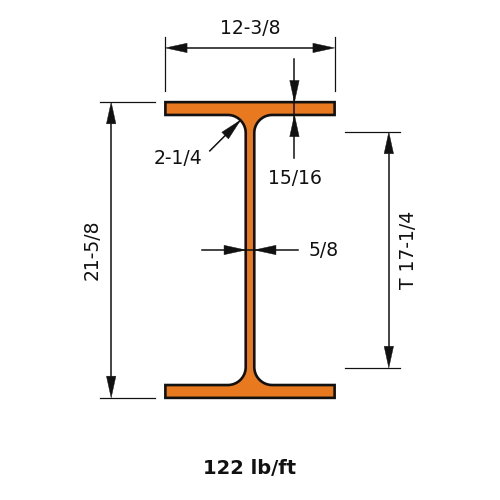

Dimensions

PropertyValue
Nominal Weight (lb/ft)122.0
Depth of Section (in)21.7
Width of Section (in)12.4
Web Thickness (in)0.6
Flange Thickness (in)0.96
Kdet Dimension (in)2.25
T Dimension (in)17.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2960
Zx (in³)307
Sx (in³)273
rx (in)9.09
Iy (in⁴)305
Zy (in³)75.6
Sy (in³)49.2
ry (in)2.92
J (in⁴)8.98
Cw (in⁶)32700
rts (in)3.4
ho (in)20.7
