W21x201 – W Shapes - American wide flange beams

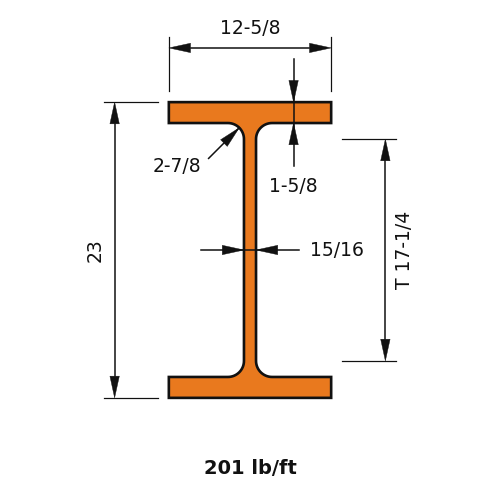

W21x201 is 23 in (584 mm) deep with a 12.6 in (320 mm) wide flange, and weighs 201 lb/ft (299.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)201.0
Depth of Section (in)23.0
Width of Section (in)12.6
Web Thickness (in)0.91
Flange Thickness (in)1.63
Kdet Dimension (in)2.875
T Dimension (in)17.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)5310
Zx (in³)530
Sx (in³)461
rx (in)9.47
Iy (in⁴)542
Zy (in³)133
Sy (in³)86.1
ry (in)3.02
J (in⁴)40.9
Cw (in⁶)62000
rts (in)3.55
ho (in)21.4
