W21x223 – W Shapes - American wide flange beams

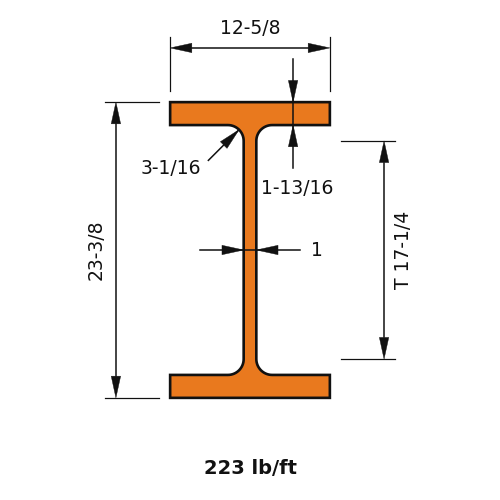

W21x223 is 23.4 in (594 mm) deep with a 12.7 in (323 mm) wide flange, and weighs 223 lb/ft (331.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)223.0
Depth of Section (in)23.4
Width of Section (in)12.7
Web Thickness (in)1.0
Flange Thickness (in)1.79
Kdet Dimension (in)3.0625
T Dimension (in)17.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)6080
Zx (in³)601
Sx (in³)520
rx (in)9.56
Iy (in⁴)614
Zy (in³)150
Sy (in³)96.7
ry (in)3.04
J (in⁴)59.5
Cw (in⁶)71700
rts (in)3.57
ho (in)21.6
