W24x55 – W Shapes - American wide flange beams

W24x55 is 23.6 in (599 mm) deep with a 7.01 in (178 mm) wide flange, and weighs 55 lb/ft (81.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

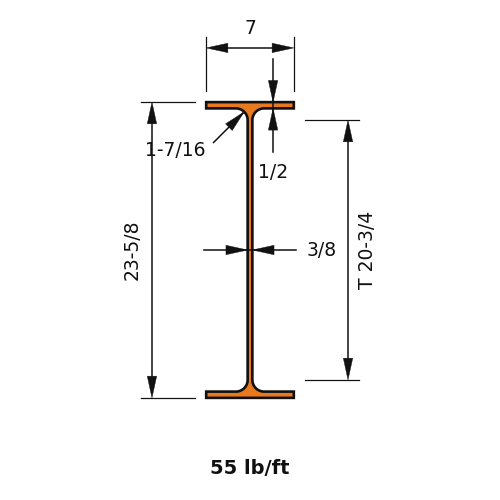

Dimensions

PropertyValue
Nominal Weight (lb/ft)55.0
Depth of Section (in)23.6
Width of Section (in)7.01
Web Thickness (in)0.395
Flange Thickness (in)0.505
Kdet Dimension (in)1.4375
T Dimension (in)20.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1350
Zx (in³)134
Sx (in³)114
rx (in)9.11
Iy (in⁴)29.1
Zy (in³)13.3
Sy (in³)8.3
ry (in)1.34
J (in⁴)1.18
Cw (in⁶)3870
rts (in)1.72
ho (in)23.1

Full sortable table: Section properties table for this family
