W21x275 – W Shapes - American wide flange beams

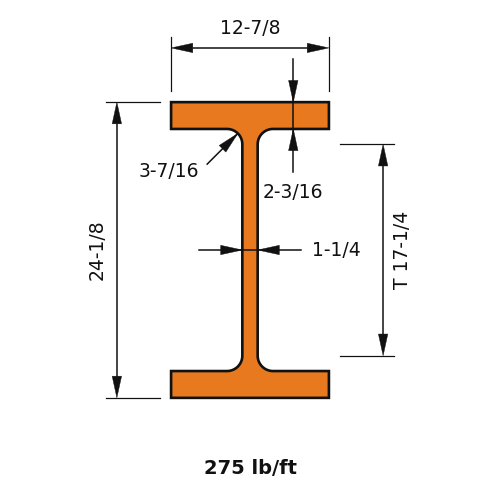

W21x275 is 24.1 in (612 mm) deep with a 12.9 in (328 mm) wide flange, and weighs 275 lb/ft (409.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)275.0
Depth of Section (in)24.1
Width of Section (in)12.9
Web Thickness (in)1.22
Flange Thickness (in)2.19
Kdet Dimension (in)3.4375
T Dimension (in)17.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)7690
Zx (in³)749
Sx (in³)638
rx (in)9.7
Iy (in⁴)787
Zy (in³)191
Sy (in³)122
ry (in)3.1
J (in⁴)107
Cw (in⁶)94400
rts (in)3.68
ho (in)21.9

Full sortable table: Section properties table for this family
