W24x306 – W Shapes - American wide flange beams

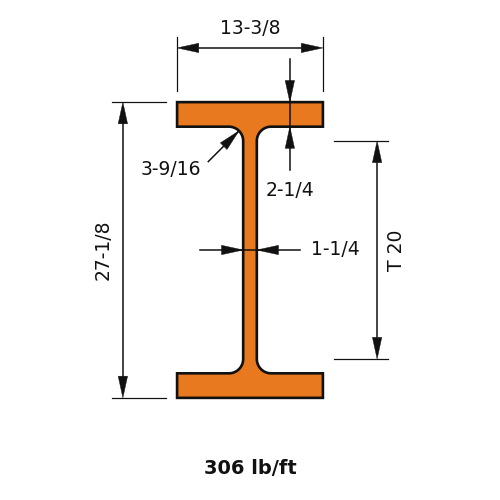

W24x306 is 27.1 in (688 mm) deep with a 13.4 in (340 mm) wide flange, and weighs 306 lb/ft (455.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)306.0
Depth of Section (in)27.1
Width of Section (in)13.4
Web Thickness (in)1.26
Flange Thickness (in)2.28
Kdet Dimension (in)3.5625
T Dimension (in)20.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)10700
Zx (in³)922
Sx (in³)789
rx (in)10.9
Iy (in⁴)919
Zy (in³)214
Sy (in³)137
ry (in)3.2
J (in⁴)117
Cw (in⁶)142000
rts (in)3.81
ho (in)24.8

Full sortable table: Section properties table for this family
