W24x335 – W Shapes - American wide flange beams

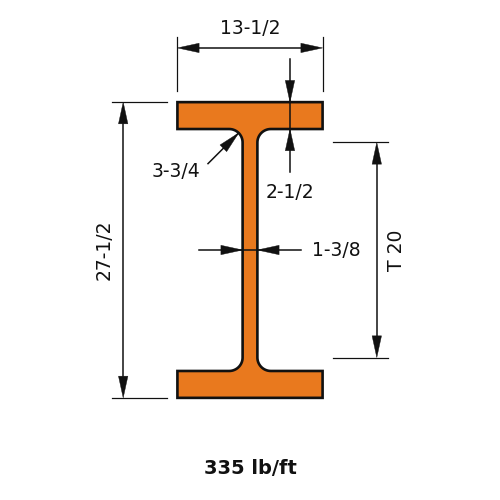

W24x335 is 27.5 in (699 mm) deep with a 13.5 in (343 mm) wide flange, and weighs 335 lb/ft (498.5 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)335.0
Depth of Section (in)27.5
Width of Section (in)13.5
Web Thickness (in)1.38
Flange Thickness (in)2.48
Kdet Dimension (in)3.75
T Dimension (in)20.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)11900
Zx (in³)1020
Sx (in³)864
rx (in)11
Iy (in⁴)1030
Zy (in³)238
Sy (in³)152
ry (in)3.23
J (in⁴)152
Cw (in⁶)161000
rts (in)3.86
ho (in)25

Full sortable table: Section properties table for this family
