W27x102 – W Shapes - American wide flange beams

W27x102 is 27.1 in (688 mm) deep with a 10 in (254 mm) wide flange, and weighs 102 lb/ft (151.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

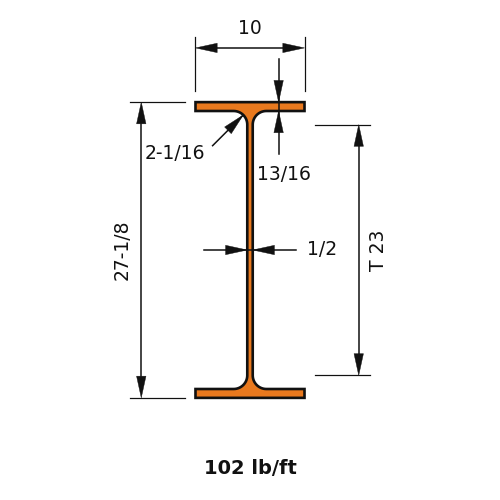

Dimensions

PropertyValue
Nominal Weight (lb/ft)102.0
Depth of Section (in)27.1
Width of Section (in)10.0
Web Thickness (in)0.515
Flange Thickness (in)0.83
Kdet Dimension (in)2.0625
T Dimension (in)23.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3620
Zx (in³)305
Sx (in³)267
rx (in)11
Iy (in⁴)139
Zy (in³)43.4
Sy (in³)27.8
ry (in)2.15
J (in⁴)5.28
Cw (in⁶)24000
rts (in)2.62
ho (in)26.3

Full sortable table: Section properties table for this family
