W27x114 – W Shapes - American wide flange beams

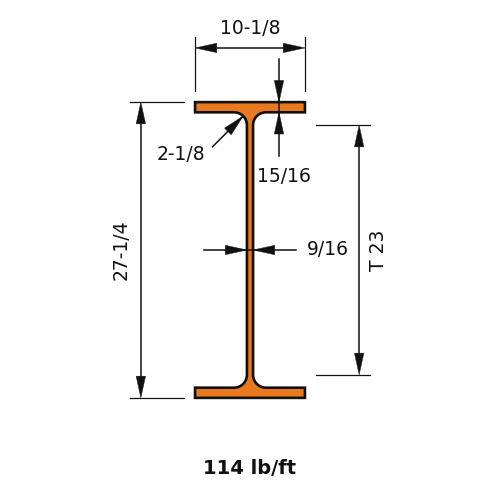

W27x114 is 27.3 in (693 mm) deep with a 10.1 in (257 mm) wide flange, and weighs 114 lb/ft (169.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)114.0
Depth of Section (in)27.3
Width of Section (in)10.1
Web Thickness (in)0.57
Flange Thickness (in)0.93
Kdet Dimension (in)2.125
T Dimension (in)23.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)4080
Zx (in³)343
Sx (in³)299
rx (in)11
Iy (in⁴)159
Zy (in³)49.3
Sy (in³)31.5
ry (in)2.18
J (in⁴)7.33
Cw (in⁶)27600
rts (in)2.65
ho (in)26.4

Full sortable table: Section properties table for this family
