W27x539 – W Shapes - American wide flange beams

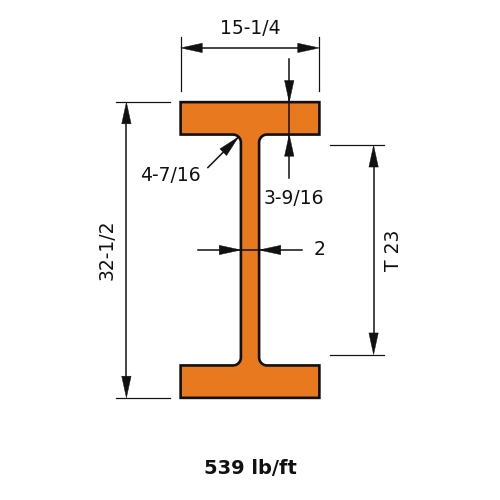

W27x539 is 32.5 in (826 mm) deep with a 15.3 in (389 mm) wide flange, and weighs 539 lb/ft (802.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)539.0
Depth of Section (in)32.5
Width of Section (in)15.3
Web Thickness (in)1.97
Flange Thickness (in)3.54
Kdet Dimension (in)4.4375
T Dimension (in)23.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)25600
Zx (in³)1890
Sx (in³)1570
rx (in)12.7
Iy (in⁴)2110
Zy (in³)437
Sy (in³)277
ry (in)3.65
J (in⁴)496
Cw (in⁶)443000
rts (in)4.41
ho (in)29
