W30x90 – W Shapes - American wide flange beams

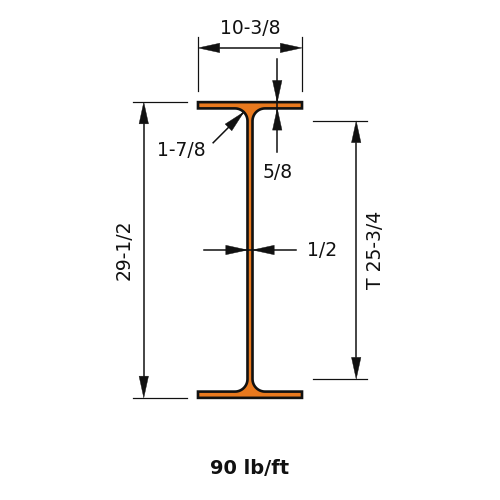

W30x90 is 29.5 in (749 mm) deep with a 10.4 in (264 mm) wide flange, and weighs 90 lb/ft (133.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)90.0
Depth of Section (in)29.5
Width of Section (in)10.4
Web Thickness (in)0.47
Flange Thickness (in)0.61
Kdet Dimension (in)1.875
T Dimension (in)25.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3610
Zx (in³)283
Sx (in³)245
rx (in)11.7
Iy (in⁴)115
Zy (in³)34.7
Sy (in³)22.1
ry (in)2.09
J (in⁴)2.84
Cw (in⁶)24000
rts (in)2.6
ho (in)28.9
