W33x141 – W Shapes - American wide flange beams

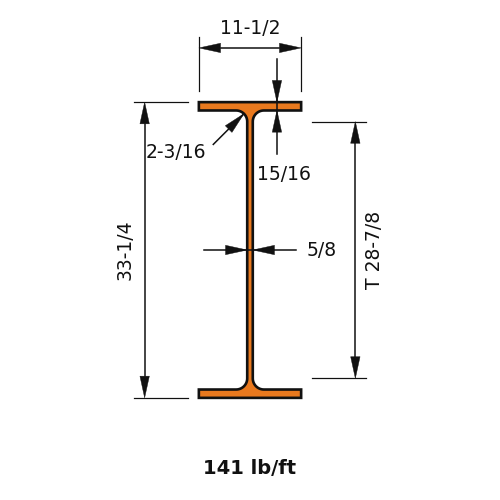

W33x141 is 33.3 in (846 mm) deep with an 11.5 in (292 mm) wide flange, and weighs 141 lb/ft (209.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)141.0
Depth of Section (in)33.3
Width of Section (in)11.5
Web Thickness (in)0.605
Flange Thickness (in)0.96
Kdet Dimension (in)2.1875
T Dimension (in)28.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)7450
Zx (in³)514
Sx (in³)448
rx (in)13.4
Iy (in⁴)246
Zy (in³)66.9
Sy (in³)42.7
ry (in)2.43
J (in⁴)9.7
Cw (in⁶)64400
rts (in)2.98
ho (in)32.3
