W33x152 – W Shapes - American wide flange beams

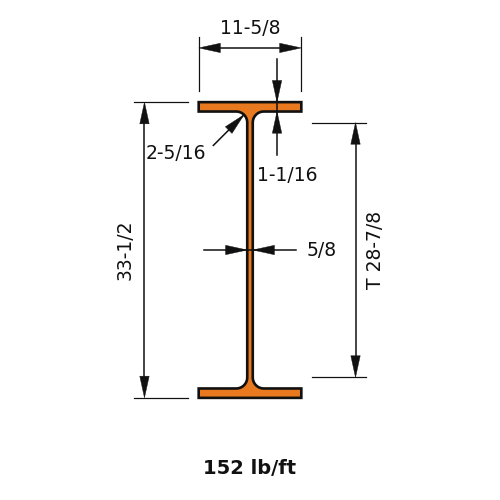

W33x152 is 33.5 in (851 mm) deep with an 11.6 in (295 mm) wide flange, and weighs 152 lb/ft (226.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)152.0
Depth of Section (in)33.5
Width of Section (in)11.6
Web Thickness (in)0.635
Flange Thickness (in)1.06
Kdet Dimension (in)2.3125
T Dimension (in)28.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)8160
Zx (in³)559
Sx (in³)487
rx (in)13.5
Iy (in⁴)273
Zy (in³)73.9
Sy (in³)47.2
ry (in)2.47
J (in⁴)12.4
Cw (in⁶)71700
rts (in)3.01
ho (in)32.4
