W33x201 – W Shapes - American wide flange beams
W33x201 is 33.7 in (856 mm) deep with a 15.7 in (399 mm) wide flange, and weighs 201 lb/ft (299.1 kg/m).
Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections

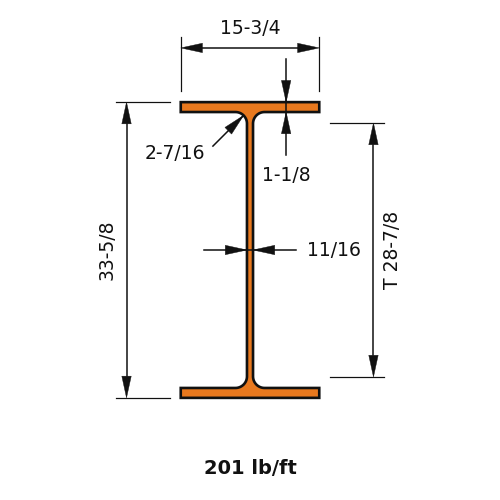

Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 201.0 |
| Depth of Section (in) | 33.7 |
| Width of Section (in) | 15.7 |
| Web Thickness (in) | 0.715 |
| Flange Thickness (in) | 1.15 |
| Kdet Dimension (in) | 2.4375 |
| T Dimension (in) | 28.875 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 11600 |
| Zx (in³) | 773 |
| Sx (in³) | 686 |
| rx (in) | 14 |
| Iy (in⁴) | 749 |
| Zy (in³) | 147 |
| Sy (in³) | 95.2 |
| ry (in) | 3.56 |
| J (in⁴) | 20.8 |
| Cw (in⁶) | 198000 |
| rts (in) | 4.21 |
| ho (in) | 32.6 |
