W33x221 – W Shapes - American wide flange beams

W33x221 is 33.9 in (861 mm) deep with a 15.8 in (401 mm) wide flange, and weighs 221 lb/ft (328.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

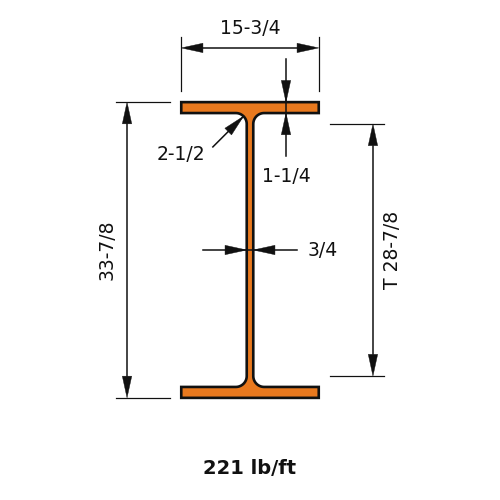

Dimensions

PropertyValue
Nominal Weight (lb/ft)221.0
Depth of Section (in)33.9
Width of Section (in)15.8
Web Thickness (in)0.775
Flange Thickness (in)1.28
Kdet Dimension (in)2.5
T Dimension (in)28.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)12900
Zx (in³)857
Sx (in³)759
rx (in)14.1
Iy (in⁴)840
Zy (in³)164
Sy (in³)106
ry (in)3.59
J (in⁴)27.8
Cw (in⁶)224000
rts (in)4.25
ho (in)32.6
