W33x318 – W Shapes - American wide flange beams

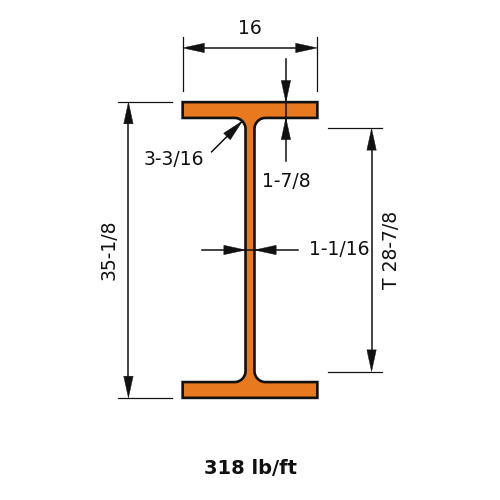

W33x318 is 35.2 in (894 mm) deep with a 16 in (406 mm) wide flange, and weighs 318 lb/ft (473.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)318.0
Depth of Section (in)35.2
Width of Section (in)16.0
Web Thickness (in)1.04
Flange Thickness (in)1.89
Kdet Dimension (in)3.1875
T Dimension (in)28.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)19500
Zx (in³)1270
Sx (in³)1110
rx (in)14.5
Iy (in⁴)1290
Zy (in³)250
Sy (in³)161
ry (in)3.71
J (in⁴)84.4
Cw (in⁶)357000
rts (in)4.4
ho (in)33.3

Full sortable table: Section properties table for this family
