W33x354 – W Shapes - American wide flange beams

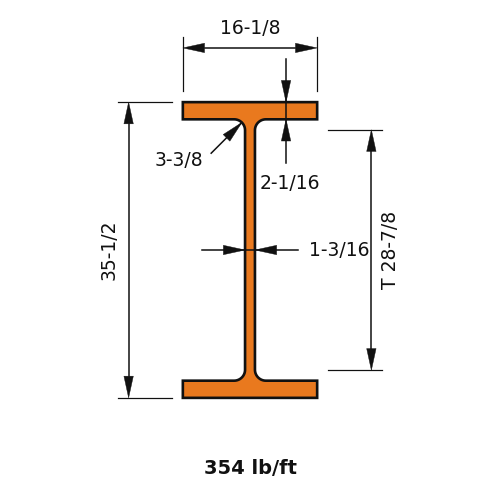

W33x354 is 35.6 in (904 mm) deep with a 16.1 in (409 mm) wide flange, and weighs 354 lb/ft (526.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)354.0
Depth of Section (in)35.6
Width of Section (in)16.1
Web Thickness (in)1.16
Flange Thickness (in)2.09
Kdet Dimension (in)3.375
T Dimension (in)28.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)22000
Zx (in³)1420
Sx (in³)1240
rx (in)14.5
Iy (in⁴)1460
Zy (in³)282
Sy (in³)181
ry (in)3.74
J (in⁴)115
Cw (in⁶)408000
rts (in)4.44
ho (in)33.5

Full sortable table: Section properties table for this family
