W36x135 – W Shapes - American wide flange beams

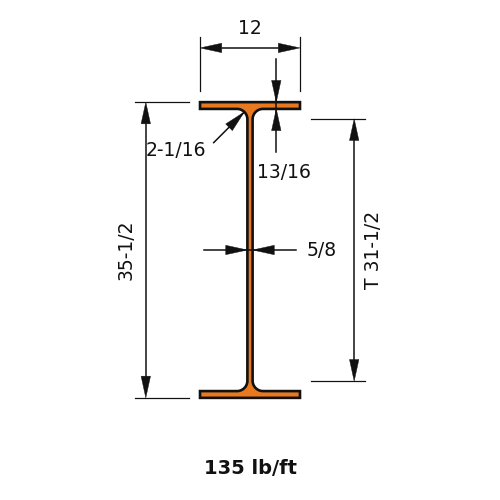

W36x135 is 35.6 in (904 mm) deep with a 12 in (305 mm) wide flange, and weighs 135 lb/ft (200.9 kg/m).
Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 135.0 |
| Depth of Section (in) | 35.6 |
| Width of Section (in) | 12.0 |
| Web Thickness (in) | 0.6 |
| Flange Thickness (in) | 0.79 |
| Kdet Dimension (in) | 2.0625 |
| T Dimension (in) | 31.5 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 7800 |
| Zx (in³) | 509 |
| Sx (in³) | 439 |
| rx (in) | 14 |
| Iy (in⁴) | 225 |
| Zy (in³) | 59.7 |
| Sy (in³) | 37.7 |
| ry (in) | 2.38 |
| J (in⁴) | 7 |
| Cw (in⁶) | 68100 |
| rts (in) | 2.99 |
| ho (in) | 34.8 |
Full sortable table: Section properties table for this family
